BioVector? 維氏弧菌 Vmax? 高速生長表達菌株

BioVector? Vibrio natriegens Vmax? Hyper-Growth Expression Strain

第一部分 中文說明

一 產品基本信息與遺傳學背景

• 菌株名稱：Vibrio natriegens Vmax?

• 物種來源：維氏弧菌 (Vibrio natriegens)

• 野生型背景與人工改良：

  • 天然超能力：野生型維氏弧菌是一種分離自鹽沼環境的非致病性海洋細菌。它是目前地球上已知倍增速度最快的自由生活生物。

  • Vmax? 改良特征：Vmax? 是通過對野生型菌株進行精準的基因組工程與代謝通路重塑而獲得的重組蛋白/質粒高通量表達專用工程菌株。研發人員對其內源性限制修飾系統進行了滅活（敲除了特定的核酸酶基因，如類似于大腸桿菌 endA 和 hsdR 的功能位點），使其能夠直接高效穩定地容納外源 DNA，極大地提高了轉化效率。此外，還集成引入了受異丙基硫代半乳糖苷（IPTG）嚴格調控的 T7 RNA 聚合酶轉錄系統，使其能夠完美兼容現有的 T7 啟動子表達載體（如 pET 系列質粒）。

• 生物安全級別：1級（BSL-1）。該菌株對人類、動物及植物均無致病性。

二 核心生物學優勢與突破性生長動力學

Vmax? 菌株的設計旨在全面顛覆并取代傳統大腸桿菌（E. coli）在現代分子生物學克隆和蛋白質表達中的統治地位，其核心技術參數如下：

1. 極端極速的倍增時間（Unparalleled Growth Kinetics）：

   • 在優化的專用富集培養基（如 Vmax? Optimized Medium）中，Vmax? 處于對數生長期的群體群體倍增時間（Doubling Time）僅為 7 至 10 分鐘。這比傳統大腸桿菌快了近一倍。

   • 極速的生長使得原本在 E. coli 中需要孵育過夜（16小時）的平板單菌落長成或液體搖瓶擴增，在 Vmax? 中僅需 4 至 6 小時即可完全達到相同的生物量飽和點。

2. 超高密度的生物量與質粒/蛋白高產豐度：

   • 相同培養體積下，Vmax? 能夠達到的最終細胞密度（OD600）通常是大腸桿菌的 2 至 3 倍。這意味著單瓶搖瓶培養即可獲得極高豐度的細胞沉淀。

   • 由于其細胞內具有極高密度的核糖體和極快的翻譯延伸速率，目標重組蛋白的單細胞產率和總表達量大幅增加，且質粒提取的終產量也顯著高于大腸桿菌。

3. 高豐度可溶性表達（Improved Solubility）：

   • Vmax? 具有截然不同于大腸桿菌的胞內滲透壓環境和天然分子伴侶系統。許多在大腸桿菌中極易形成不溶性包涵體（Inclusion Bodies）的頑固蛋白，在 Vmax? 胞內往往能以高豐度、活性可溶（Soluble）的狀態正確折疊表達。

三 培養基配置、轉化、擴增與誘導標準操作步驟

1. 專用培養基配方（至關重要，嚴禁直接使用標準 LB 培養基）：

   • 維氏弧菌作為一種海洋衍生菌，其生長和維持對鈉離子（$Na^+$）及特定的滲透壓平衡有強制性要求。在標準大腸桿菌 LB 培養基中由于缺乏足夠的鹽分，Vmax? 將完全無法生長甚至?xí)园l(fā)裂解。

   • BioVector? Vmax? 專用優化培養基（Vmax? Optimized Medium / vLB）：

     • 10 g 胰蛋白胨 (Tryptone)

     • 5 g 酵母提取物 (Yeast Extract)

     • 15 g 至 20 g 氯化鈉 (NaCl) （工作總濃度約為 1.5% - 2%，是大腸桿菌常規 LB 鹽濃度的 3 到 4 倍）。

     • 補充添加（可選，用于最大化對數期生長）：0.4% $\text{v/v}$ 甘油、4.2 g/L $MgCl_2 \cdot 6H_2O$。pH 值精密調整至 7.5。

2. 質粒轉化（Transformation）：

   • 感受態細胞準備：使用 BioVector? 專用的低鹽/高滲透壓洗滌緩沖液（含蔗糖及鎂鹽）制備 Vmax? 電轉或化學感受態細胞。

   • 轉化操作：由于已敲除內源 DNA 降解屏障，可直接將 pET 系列、pUC 系列或其它大腸桿菌常用質粒直接加入感受態中。執行標準熱激法（42°C，45秒）或電擊法。

   • 復蘇鋪板：熱激后加入 1 ml 預熱的 vLB 液體培養基，在 37 攝氏度下僅需復蘇 30 分鐘。隨后涂布于含有對應抗生素的高鹽 vLB 固體平板上。置于 37 攝氏度溫育，4 至 5 小時后即可直接用肉眼觀察并挑選清晰的單菌落，無需過夜等待。

3. 高通量蛋白表達與 IPTG 誘導（Protein Induction）：

   • 種子液擴增：從 vLB 平板上挑取單菌落接種入 5 ml vLB 液體中，37°C 振蕩培養（250 rpm），僅需約 2 小時其 OD600 即可飆升至對數中期。

   • 放大培養與誘導：按 1比100 轉種至大容量 vLB 培養基中。當菌液密度 OD600 極速達到 0.6 至 0.8 時（通常轉種后 40-60 分鐘內即可達到），立即加入終濃度為 0.1 mM 至 0.5 mM 的 IPTG。

   • 收獲時段：誘導開啟后，由于其超高的翻譯效率，通常在 30 攝氏度下誘導 2 至 4 小時，或在 37 攝氏度下誘導 1 至 2 小時，目標重組蛋白的胞內積累量即可達峰。此時即可離心收集菌體沉淀進行后續的蛋白純化。

四 核心科研與工業應用方向

1. 全流程科研周期的斷崖式縮短（Ultra-Fast Molecular Cloning）：Vmax? 允許實驗人員在單個工作日內連續完成“質粒轉化 $\rightarrow$ 菌落生長 $\rightarrow$ 液體擴增 $\rightarrow$ 質粒提取/蛋白誘導”的全套完整流程，徹底終結了分子生物學中依賴“隔夜孵育”的傳統工作模式。

2. 頑固蛋白/功能酶類的可溶性高表達開發：利用其天然具有的海洋高效折疊微環境，專門解決結構復雜、構象多變、在 E. coli 中極易發生由于翻譯速度失衡而堆積成包涵體的問題，是生產高活性工業酶、治療性單鏈抗體（scFv）及難表達細胞因子的理想宿主。

3. 自動化高通量藥物篩選與合成生物學文庫構建：在制藥工業和基因組學庫篩選中，Vmax? 極短的生長周期與自動化液體工作站（Robotic Liquid Handlers）完美契合。能夠在幾小時內批量完成成千上萬個突變體克隆的重組表達和初步活性評測，大幅度加速了定向進化（Directed Evolution）和藥物靶點篩選的工作矩陣。

PART 2 ENGLISH SECTION

I General Information and Genetic Background

• Strain Name: Vibrio natriegens Vmax?

• Species Origin: Vibrio natriegens

• Wild-type Background & Engineering Modifications:

  • Natural Superpower: Wild-type Vibrio natriegens is a non-pathogenic marine bacterium originally isolated from salt-marsh ecosystems. It is recognized as the fastest-growing free-living organism documented on Earth.

  • Vmax? Engineered Blueprint: The Vmax? strain is a premium derivative specifically re-engineered via comprehensive genomic editing and metabolic flux redirection to serve as an ultra-high-throughput host for recombinant protein and plasmid manufacturing. Molecular developers successfully deactivated its endogenous restriction-modification systems (knocking out critical endonuclease genes equivalent to E. coli's endA and hsdR loci) to permit stable, high-efficiency uptake of foreign DNA. Furthermore, an Isopropyl $\beta$-D-1-thiogalactopyranoside (IPTG)-inducible T7 RNA Polymerase expression cassette has been integrated into its chromosome, delivering seamless compatibility with mainstream T7-promoter vectors (e.g., pET plasmid series).

• Biosafety Level: BSL-1. Totally non-pathogenic to humans, animals, or agricultural plants.

II Core Bioprocess Advantages & Breakthrough Growth Kinetics

The Vmax? host is custom-tailored to subvert and upgrade conventional Escherichia coli regimes in recombinant prototyping. Its technical performance parameters are detailed below:

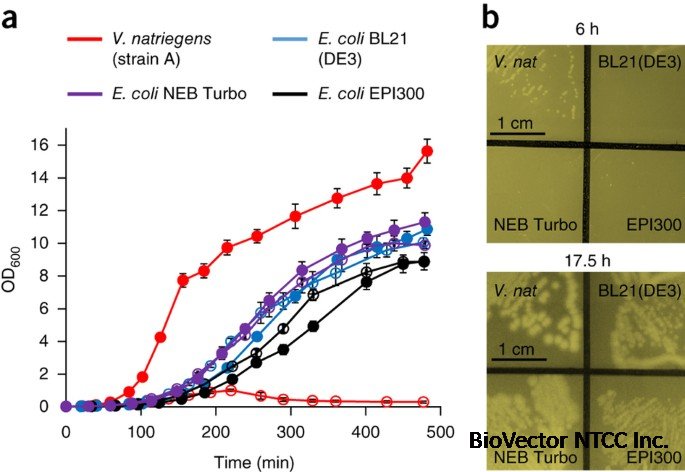

1. Hyper-Accelerated Generation Times:

   • When cultivated inside optimized specialized media setups (e.g., Vmax? Optimized Medium), Vmax? achieves a logarithmic population doubling time of just 7 to 10 minutes, essentially cutting the generation cycle of standard E. coli in half.

   • This growth profile transforms multi-step molecular biology pathways. Routine procedures like single-colony plate cultivation or liquid culture amplification—which natively require a 16-hour overnight incubation in E. coli—reach full biomass saturation within 4 to 6 hours in Vmax?.

2. Superior Biomass Densities & High Extraction Yields:

   • Vmax? routinely accumulates a final cell density (OD600) 2- to 3-fold higher than standard E. coli under identical culture volume conditions, delivering exceptional wet pellet mass from small-scale shake flasks.

   • Supported by high intracellular ribosome density and accelerated translation elongation velocities, it provides both exceptional per-cell recombinant protein expression capacity and high total yields of isolated plasmid DNA.

3. Enhanced Soluble Protein Folding Capabilities:

   • Vmax? possesses a unique intracellular osmotic matrix and specialized native molecular chaperone machinery distinct from enteric bacteria. Complex, difficult-to-express target proteins that normally aggregate into insoluble inclusion bodies inside E. coli are frequently routed toward high-yield, active, and fully soluble folding pathways within the Vmax? cytoplasm.

III Media Formulation, Transformation, Expansion, and Protein Induction

1. Specialized Medium Specifications (Crucial Requirement: Do NOT use standard LB broth):

   • Being a marine-derived organism, Vibrio natriegens maintains an obligate structural dependence on sodium ions ($Na^+$) and specific hyper-osmotic balances to stabilize its cell wall. Cultivating Vmax? in standard E. coli LB formulations will cause absolute growth failure or spontaneous cell lysis due to insufficient salinity.

   • BioVector? Vmax? Optimized Medium (vLB Formulations):

     • 10 g Tryptone

     • 5 g Yeast Extract

     • 15 g to 20 g Sodium Chloride (NaCl) (Yielding a final salinity matrix around 1.5% - 2.0% $\text{w/v}$, which is 3 to 4 times the salt content of standard E. coli LB recipes).

     • Optional Performance Boosters: 0.4% $\text{v/v}$ Glycerol, 4.2 g/L $MgCl_2 \cdot 6H_2O$. Adjust final pH to a precision metric of 7.5.

2. Plasmid Transformation Regimen:

   • Competent Cell Preparation: Prepare electrocompetent or chemically competent Vmax? blocks utilizing specialized low-salt, hyper-osmotic washing matrices incorporated with sucrose and magnesium stabilizers.

   • Transformation Protocol: Since endogenous DNA-cleaving barriers are genetically disabled, introduce pET-series, pUC-series, or related standard expression plasmids directly to the competent cell aliquots. Execute standard heat-shock processing (42°C for 45 seconds) or electroporation pulse sequences.

   • Outgrowth Handling: Post-shock, replenish cells immediately with 1 ml of pre-warmed vLB broth. Outgrowth requires only 30 minutes at 37°C. Plate the mixture onto selective vLB agar plates containing the appropriate selection antibiotics. Incubate at 37°C; visible, fully developed single colonies emerge in 4 to 5 hours, bypassing overnight delays.

3. High-Throughput Expression Tuning and IPTG Induction:

   • Starter Inoculation: Inoculate a single colony from the fresh vLB plate into 5 ml of liquid vLB. Shake at 37°C (250 rpm). The culture's OD600 will rapidly enter mid-log phase within approximately 2 hours.

   • Scale-Up and Seeding: Seed the starter culture into larger vLB processing volumes at a 1:100 split configuration. The culture will scale dynamically, hitting the target induction density threshold (OD600 of 0.6 to 0.8) within a brief 40- to 60-minute window post-seeding. Turn on expression by adding IPTG at a final concentration range of 0.1 mM to 0.5 mM.

   • Harvest Timepoint: Driven by intense translation velocities, cellular accumulation of the target protein reaches peak production saturation within 2 to 4 hours of induction at 30°C (or 1 to 2 hours at 37°C). Spin down the slurry to collect the wet cell mass for downstream protein purification workflows.

IV Strategic Research & Industrial Applications

1. Elimination of Overnight Incubation Bottlenecks (Same-Day Cloning workflows): Vmax? enables scientists to consolidate transformation, colony development, liquid expansion, and plasmid harvesting/protein induction sequences into a single standard 8-hour shift, eliminating the traditional overnight incubation step in molecular biology protocols.

2. Soluble Expression Engineering for Refractory Enzymes: Capitalizes on its marine-derived cytoplasmic folding microenvironment to systematically resolve inclusion body blockades triggered by unbalanced translation rates in E. coli. It acts as a premier system for producing high-activity industrial catalysts, single-chain variable fragments (scFv antibodies), and delicate cellular signaling factors.

3. Automated High-Throughput Screening and Directed Evolution Libraries: Vmax?'s rapid kinetic replication loop integrates seamlessly with robotic liquid-handling workstations in pharmaceutical screening and synthetic biology discovery pipelines. By processing thousands of structural mutant variants through expression and primary activity assays within hours, it significantly accelerates directed evolution screens and therapeutic target discovery.
