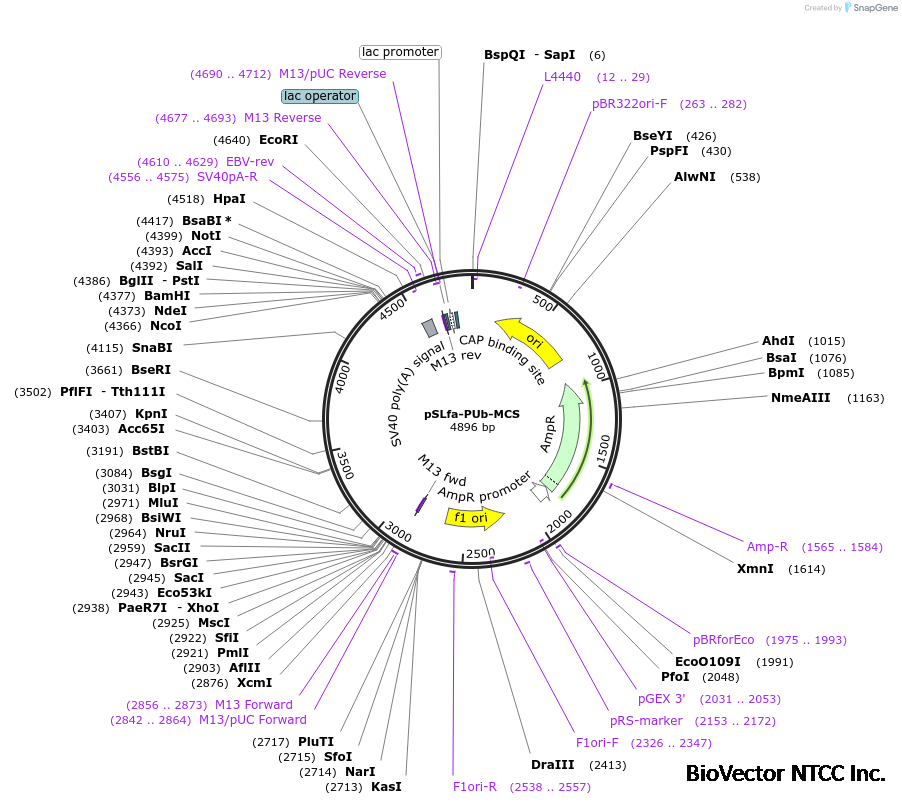

BioVector? pSLfa-PUb-MCS 植物雙元質粒載體

BioVector? pSLfa-PUb-MCS Plant Binary Plasmid Vector

第一部分 中文說明

一 載體基本信息與用途

• 載體名稱 BioVector? pSLfa-PUb-MCS

• 載體類型 植物表達質粒載體 / 雙元改造中間載體。

• 核心用途 專門用于單子葉植物（如水稻、小麥、玉米）的高效基因轉錄調控與多基因表達元件盒的組裝。

• 抗性標記

  • 大腸桿菌及農桿菌篩選 氨芐青霉素抗性（Ampicillin，AmpR）或特定的廣宿主抗性（根據骨架衍生有所不同，通常包含多克隆位點側翼側選擇性標志）。

  • 植物轉化篩選 根據插入的表達盒可與含有潮霉素（Hygromycin）或除草劑（Basta）抗性的主雙元載體聯合使用。

• 常用宿主菌 大腸桿菌 DH5a、Top10 以及農桿菌 EHA105、LBA4404。

二 關鍵結構域與元件配置

• 強啟動子（PUb / Polyubiquitin Promoter）：含有來自單子葉植物的多聚泛素強啟動子（通常為水稻 Rubi / Rice Polyubiquitin 或玉米 Ubi-1 啟動子）。該啟動子在單子葉植物的所有組織中均具有極高的全株組成型、高強度表達活性，其表達效率顯著高于傳統的雙子葉植物花椰菜花葉病毒 35S 啟動子。

• 內含子（Intron）：在 PUb 啟動子下游緊鄰一個優化的植物內含子序列。該結構能通過內含子介導的表達增強機制（IME, Intron-Mediated Enhancement），大幅提升目標 mRNA 在植物細胞核內的加工效率與出核穩定性，進而顯著提高蛋白質的最終翻譯量。

• 多克隆位點（MCS）：搭載了經過優化的多克隆位點，便于平滑插入目標目的基因。

• 獨特側翼限制性酶切位點（fa / Rare cutters）：整個表達盒的兩端（即啟動子上游和終止子下游）被兩組極為罕見的稀有內含子限制性內切酶位點（如 SfiI 或 fa 核心識別序列）所包裹。

  • 核心優勢：利用這組稀有酶切位點，科研人員可以非常方便地將整個完整的“PUb-內含子-MCS-終止子”表達盒整體切下，直接無縫克隆拼接到大型植物雙元表達載體（如 pCAMBIA 系列、pYLT 系列）中，極大地簡化了多基因串聯（Multigene stacking）多產物代謝途徑的分子克隆難度。

三 標準分子克隆與轉化操作步驟

1. 目的基因插入 選用多克隆位點 MCS 中的合適酶切位點，對 BioVector? pSLfa-PUb-MCS 載體和 PCR 擴增的目的基因片段進行雙酶切，經 T4 DNA 連接酶連接后轉化大腸桿菌 DH5a。

2. 陽性克隆鑒定 利用通用引物或目的基因特異性引物進行菌落 PCR 篩選，并提取質粒進行酶切質控與測序驗證。

3. 表達盒整體轉移 使用 SfiI 等稀有內含子酶切整段表達盒，隨后將其連接到最終用于植物轉化的目標雙元載體中。

4. 農桿菌轉化與轉化植物 將構建好的最終雙元載體通過電轉化或凍融法導入農桿菌中，利用農桿菌介導的遺傳轉化法（如水稻愈傷組織轉化、玉米幼胚轉化）侵染宿主植物，通過相應的抗生素進行陽性植株篩選。

四 核心科研應用方向

1. 單子葉植物基因功能驗證與過表達（Overexpression）：作為高效率的單子葉專用過表達載體系統，用于創制高表達特定功能基因的轉基因水稻、玉米，從而深入解析逆境脅迫、產量性狀、激素信號轉導等分子機理。

2. 多基因堆疊與多酶代謝途徑重構：利用其特殊的側翼稀有酶切位點（fa結構），可并行構建多個帶有不同目的基因的 pSLfa-PUb-MCS 衍生載體，再通過步移法或模塊化拼接，將多個獨立表達盒串聯到同一個 T-DNA 區段內，用于植物生物反應器或復合性狀的分子育種。

3. 基因編輯（CRISPR/Cas9）輔助骨架：用于高強度、高穩定性地驅動 Cas9 核酸酶、堿基編輯器（Base Editors）或引導編輯器（Prime Editors）在單子葉植物中的表達，以提高精準編輯的綜合效率。

PART 2 ENGLISH SECTION

I General Information and Applications

• Vector Name BioVector? pSLfa-PUb-MCS

• Vector Type Plant Expression Vector / Binary Shuttle Vector System.

• Primary Application Specifically engineered for highly efficient gene transcription regulation and multigene expression cassette stacking in monocotyledonous plants such as rice, wheat, and maize.

• Selection Markers

  • Bacterial Selection Ampicillin resistance (AmpR) for cloning propagation in E. coli or Agrobacterium.

  • Plant Selection Designed to be shuttled into ultimate destination binary vectors containing Hygromycin B or Basta resistance genes for transgenic plant tissue selection.

• Common Host Strains E. coli DH5a, Top10, and Agrobacterium tumefaciens strains EHA105 or LBA4404.

II Vector Anatomy and Component Configuration

• Strong Ubiquitin Promoter (PUb): Outfitted with a monocot-derived polyubiquitin promoter (such as the rice Rubi or maize Ubi-1 promoter). This element drives constitutive, high-level broad-spectrum expression across nearly all plant tissues, demonstrating vastly superior transcript yields in monocots compared to the standard dicot-preferred CaMV 35S promoter.

• Intron Sequence: Includes a specialized, optimized plant intron located directly downstream of the PUb promoter. This element recruits the host cell splicing machinery to engage Intron-Mediated Enhancement (IME), drastically upgrading mRNA stability, nucleocytoplasmic export, and ultimate protein translation efficiency.

• Multiple Cloning Site (MCS): Features a dense arrangement of unique restriction endonuclease sites tailored for the clean insertion of target open reading frames.

• Flanking Rare Restriction Sites (fa / Rare Cutters): The entire expression cassette boundaries (upstream of the promoter and downstream of the terminator) are explicitly flanked by rare-cutting restriction sites, such as SfiI or corresponding fa-flanking recognition elements.

  • Core Technical Advantage: This layout permits researchers to easily excise the complete, intact "PUb-Intron-MCS-Terminator" block as a single piece. The cassette can then be directly mobilized into complex multi-gene destination binary vectors (e.g., pCAMBIA-based backbones) without undergoing tedious internal sequence adjustments, making it an excellent module for metabolic pathway engineering and multi-gene stacking.

III Subcloning and Plant Transformation Workflow

1. Insertion of Target Gene Digest both the BioVector? pSLfa-PUb-MCS vector and the target amplicon using complementary restriction sites selected from the MCS. Ligate using T4 DNA Ligase and transform into electrocompetent or chemically competent E. coli DH5a cells.

2. Clonal Verification Identify positive clones via colony PCR and confirm accuracy through plasmid diagnostic restriction digests and sequencing runs.

3. Cassette Shuttling Subclone the entire integrated expression module via rare cutters like SfiI into the final T-DNA binary carrier.

4. Agrobacterium-Mediated Transformation Introduce the verified binary vector into Agrobacterium tumefaciens via electroporation or the freeze-thaw method. Use the engineered strain to infect plant targets (e.g., embryonic rice calli or immature maize embryos), selecting for positive transgenic events with appropriate selection agents.

IV Strategic Research Applications

1. Monocot Functional Genomics & Overexpression Profiling: Serves as a premier vector to generate stable, high-expressing transgenic monocot lines, driving investigations into drought tolerance, disease resistance, crop yields, and phytohormone signal networks.

2. Multi-Gene Metabolic Pathway Reconstitution: Leverages the rare-cutting flanking elements to construct independent gene modules simultaneously. Multiple cassettes can be easily arrayed onto a single T-DNA strand to orchestrate multi-step enzyme networks or stack multi-genic agronomic traits in molecular breeding.

3. CRISPR/Cas9 Toolkit Engineering: Routinely deployed to drive uniform, high-level expression of Cas9 endonucleases, base editors, or prime editing machinery inside monocot systems, elevating overall target site editing efficiencies.
