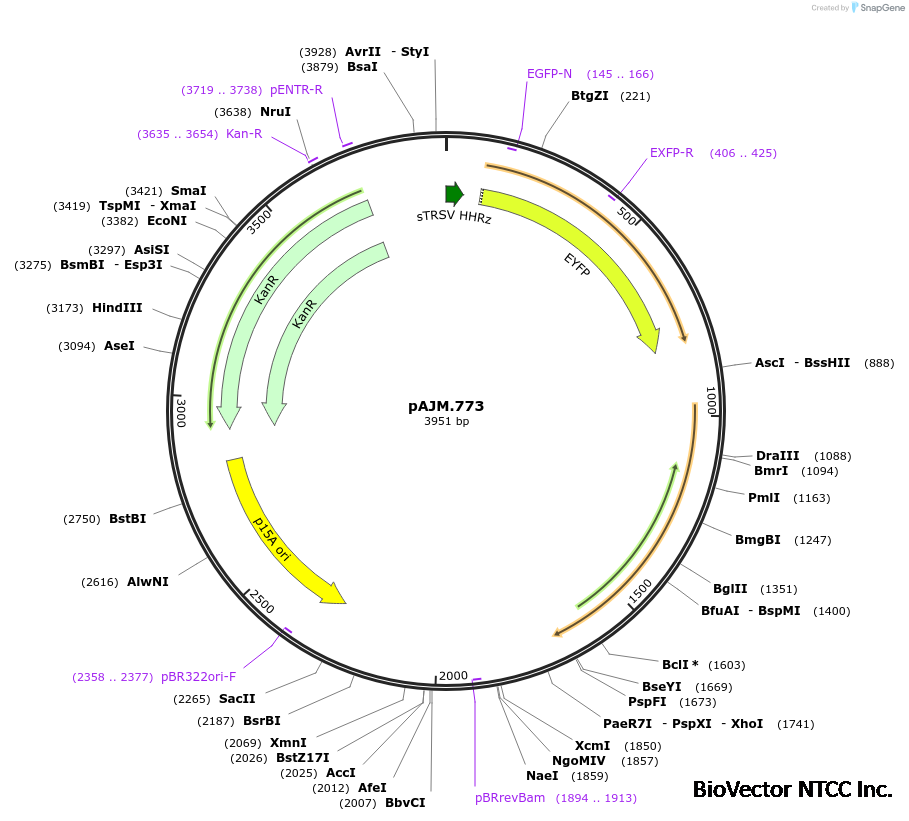

BioVector? pAJM.773細菌生物傳感器質粒 / pAJM.773 Bacterial Biosensor Plasmid

通用定義 / General Definition:

BioVector? pAJM.773 是一種源自麻省理工學院 (MIT) Voigt 實驗室 Marionette 傳感器集合 的合成生物學載體。該質粒專門用于在非 Marionette 標準大腸桿菌株中構建高效的香草酸 (Vanillic acid / Van) 生物傳感器。它是一個“全合一” (All-in-one) 載體，同時編碼了轉錄阻遏蛋白 VanR-AM 和受其調控的 PVanCC-YFP 報告模塊。當環境中存在香草酸時，VanR 蛋白發生變構并從啟動子上解離，從而誘導黃色熒光蛋白 (YFP) 的表達。該質粒是研究小分子感應、代謝工程控制以及復雜合成基因線路的基礎元件。

BioVector? pAJM.773 is a synthetic biology vector from the Marionette Sensor Collection, developed by the Voigt Lab at MIT. This plasmid is specifically designed to function as a high-performance Vanillic acid (Van) biosensor in standard (non-Marionette) E. coli strains. It is an "all-in-one" vector, encoding both the transcriptional repressor VanR-AM and the corresponding PVanCC-YFP reporter module. In the presence of vanillic acid, the VanR protein undergoes a conformational change and dissociates from the promoter, thereby inducing the expression of Yellow Fluorescent Protein (YFP). This plasmid is a fundamental component for small-molecule sensing, metabolic engineering control, and complex synthetic genetic circuit design.

BioVector? pAJM.773 技術說明書 (Plasmid Datasheet)

中文版說明書

1. 產品基本信息

• 產品名稱： BioVector? pAJM.773 傳感器質粒

• Addgene 編號： 108527




• 感應誘導劑： 香草酸 (Vanillic acid, Van)




• 報告基因： EYFP (增強型黃色熒光蛋白)




• 抗性基因： 卡那霉素 (Kanamycin)




• 復制子： p15A (低拷貝，約 10-15 copies/cell)

2. 培養與擴增條件

• 宿主菌： BioVector? NEB Stable 或 DH5-alpha。

• 培養基： BioVector? LB 培養基。

• 抗生素： 50 ug/mL 卡那霉素。




• 環境： 37 攝氏度，恒溫振蕩。

3. 載體應用

• 小分子檢測： 在大腸桿菌中實時定量監測香草酸的濃度。

• 動態代謝控制： 利用環境中的代謝產物作為開關，自動調節下游代謝途徑的基因表達。

• 生物邏輯門： 作為 Marionette 系統的 12 個正交傳感器之一，用于構建多輸入邏輯線路。

4. 注意事項

• 宿主要求： 即使在普通的非 Marionette 菌株中也能工作，因?yàn)樗詭Я俗瓒舻鞍妆磉_(dá)框。

• 低拷貝優勢： 采用 p15A 復制子是為了降低漏表達 (Leaky expression) 并減輕細胞代謝負擔。

English Datasheet

1. General Product Information

• Product Name: BioVector? pAJM.773 Sensor Plasmid

• Addgene ID: 108527




• Inducer: Vanillic acid (Van)

• Reporter Gene: EYFP (Enhanced Yellow Fluorescent Protein)




• Bacterial Resistance: Kanamycin (50 ug/mL)




• Replicon: p15A (Low-copy, approx. 10-15 copies/cell)

2. Culture and Amplification Conditions

• Host Strains: BioVector? NEB Stable or DH5-alpha.

• Culture Medium: BioVector? LB Medium.

• Incubation: 37 degrees Celsius with constant shaking.

3. Applications

• Small-Molecule Detection: Real-time quantitative monitoring of vanillic acid concentration in E. coli.

• Dynamic Metabolic Control: Using metabolic intermediates as triggers to automatically regulate gene expression in downstream pathways.

• Genetic Logic Gates: Serving as one of the 12 orthogonal sensors in the Marionette system for constructing multi-input genetic circuits.




4. Key Usage Notes

• Strain Compatibility: This vector is functional in standard E. coli strains because it contains its own constitutively expressed repressor (VanR).

• Low Leakage: The use of the p15A origin helps minimize basal (leaky) expression and reduces the metabolic burden on the host cell.

Note: For optimal sensor performance with low background noise, BioVector? recommends using M9 minimal media supplemented with necessary carbon sources. Always verify the induction range and sensitivity of pAJM.773 in your specific host strain using BioVector? high-purity Vanillic acid inducer solutions.
