BioVector? pKOR1 金黃色葡萄球菌等位基因置換質粒 / Staphylococcus aureus Allelic Replacement Plasmid 數據說明書

產品名稱: BioVector? pKOR1 質粒
同義詞: BioVector? pKOR1 穿梭載體
中文名稱: BioVector? pKOR1 金黃色葡萄球菌等位基因置換質粒
英文名稱: BioVector? pKOR1 Staphylococcus aureus Allelic Replacement Plasmid
產品類別: 穿梭載體；基因敲除質粒
質粒類型: 大腸桿菌-金黃色葡萄球菌穿梭載體；溫度敏感型等位基因置換載體
用途: 用于金黃色葡萄球菌染色體基因的無標記等位基因置換突變；快速克隆與反篩選選擇
來源信息: 由Taeok Bae 和 Olaf Schneewind 構建并饋贈
載體大小: 9974 bp
復制子:

• 大腸桿菌復制子：ColE1/pMB1/pBR322 高拷貝數復制起點

• 金黃色葡萄球菌復制子：pAMα1 (溫度敏感型)
  抗性篩選標記:

• 大腸桿菌篩選：氨芐青霉素 (100 μg/mL)

• 金黃色葡萄球菌篩選：氯霉素 (25 μg/mL)
  克隆方法: Gateway 克隆 (λ 重組)；攜帶 ccdB 致死基因用于陽性克隆篩選

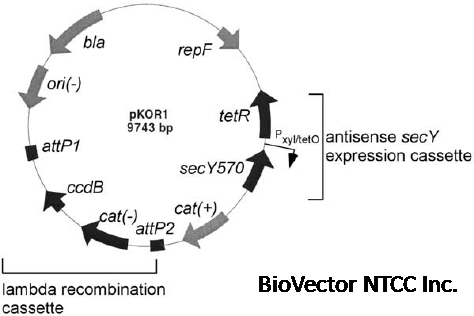

  基因元件:

1. ccdB 基因: 編碼 DNA 促旋酶毒性蛋白，用于正向選擇；僅在宿主菌 DB3.1 中可穩定維持

2. attP1/attP2 位點: Gateway 克隆系統重組位點

3. Pxyl/tetO 啟動子: 受脫水四環素誘導的反向選擇啟動子

4. secY 反義轉錄本: 脫水四環素誘導后表達，抑制金黃色葡萄球菌生長，用于反向選擇

5. TetR: 四環素阻遏蛋白編碼基因


6.

7. 特性特征:

8. 溫度敏感性復制: 在 30-37°C 條件下可在金黃色葡萄球菌中復制；在 43°C 非允許溫度下復制被抑制，用于篩選同源重組整合事件

9. 兩步篩選機制:

   • 第一步 (整合)：43°C 培養選擇質粒通過同源重組整合入染色體

   • 第二步 (切除)：脫水四環素誘導 secY 反義 RNA 表達，抑制細胞生長，選擇質粒切除和丟失事件

10. 高效性: 無需抗生素標記即可高頻率獲得等位基因置換突變體

11. 應用: 廣泛應用于金黃色葡萄球菌的基因敲除、等位基因置換、點突變引入研究
    細菌培養條件:

• 大腸桿菌宿主菌：BioVector? DB3.1 感受態細胞 (用于 pKOR1 擴增)

• 金黃色葡萄球菌宿主菌：BioVector? RN4220 或相應臨床分離株

• 培養溫度：30-37°C (質粒復制)；43°C (整合篩選)
  誘導條件: 脫水四環素 (終濃度根據實驗優化)
  質控載體: BioVector? pUC19 質粒
  宿主菌: BioVector? DB3.1 化學感受態細胞 (用于質粒擴增)
  質量控制: 測序驗證：100%正確；無菌檢測：陰性；酶切鑒定：符合預期條帶
  儲存與運輸: -20°C 或干冰運輸與保存
  僅供科研使用

English:
BioVector? pKOR1 Staphylococcus aureus Allelic Replacement Plasmid Datasheet

Product Name: BioVector? pKOR1 Plasmid
Synonyms: BioVector? pKOR1 Shuttle Vector
Chinese Name: BioVector? pKOR1 金黃色葡萄球菌等位基因置換質粒
English Name: BioVector? pKOR1 Staphylococcus aureus Allelic Replacement Plasmid
Product Category: Shuttle Vector; Gene Knockout Plasmid
Plasmid Type: E. coli-S. aureus Shuttle Vector; Temperature-Sensitive Allelic Replacement Vector
Purpose: Unmarked allelic replacement mutagenesis of S. aureus chromosomal genes; rapid cloning via lambda recombination and counter-selection
Source: Constructed and gifted by Taeok Bae and Olaf Schneewind
Vector Size: 9974 bp
Replicons:

• E. coli Replicon: ColE1/pMB1/pBR322 high-copy origin of replication

• S. aureus Replicon: pAMα1 (temperature-sensitive)
  Selection Markers:

• E. coli Selection: Ampicillin (100 μg/mL)

• S. aureus Selection: Chloramphenicol (25 μg/mL)
  Cloning Method: Gateway Cloning (λ recombination); ccdB lethal gene for positive selection
  Genetic Elements:

1. ccdB Gene: Encodes DNA gyrase toxin protein for positive selection; only maintained in DB3.1 host strain

2. attP1/attP2 Sites: Gateway cloning system recombination sites

3. Pxyl/tetO Promoter: Counter-selection promoter inducible by anhydrotetracycline

4. secY Antisense Transcript: Expressed upon anhydrotetracycline induction, inhibits S. aureus growth for counter-selection

5. TetR: Tetracycline repressor protein coding gene
   Characteristics:

6. Temperature-Sensitive Replication: Replicates in S. aureus at 30-37°C; replication is inhibited at the non-permissive temperature of 43°C, allowing selection for homologous recombination integration events

7. Two-Step Selection Mechanism:

   • Step 1 (Integration): Selection at 43°C for plasmid integration into the chromosome via homologous recombination

   • Step 2 (Excision): Anhydrotetracycline induction of secY antisense RNA expression inhibits cell growth, selecting for plasmid excision and loss events

8. High Efficiency: Allelic replacement mutants can be generated at high frequency without the need for antibiotic marker selection

9. Applications: Widely used for gene knockout, allelic replacement, and point mutation introduction in Staphylococcus aureus
   Bacterial Growth Conditions:

• E. coli Host Strain: BioVector? DB3.1 Competent Cells (for pKOR1 amplification)

• S. aureus Host Strain: BioVector? RN4220 or relevant clinical isolates

• Growth Temperature: 30-37°C (plasmid replication); 43°C (integration selection)
  Induction Condition: Anhydrotetracycline (final concentration optimized experimentally)
  Control Vector: BioVector? pUC19 Plasmid
  Host Strain: BioVector? DB3.1 Chemically Competent Cells (for plasmid amplification)
  Quality Control: Sequencing Validation: 100% correct; Sterility: Negative; Restriction Digestion: Expected bands
  Storage and Shipment: Stored and shipped at -20°C or on dry ice
  For Research Use Only
