BioVector? pCRISPR-mcBEST (BioVector?Plasmid #209416) is a specialized tool for multiplexed cytosine base editing in Streptomyces species.It is part of the CRISPR-BEST (Base Editing SysTem) toolkit, which allows for precise genome modifications without requiring double-strand breaks (DSBs).

Core Components & Function

• Editor Cassette: It carries a fusion protein consisting of a Streptomyces codon-optimized rAPOBEC1 (cytidine deaminase), nCas9 (D10A), and UGI (uracil glycosylase inhibitor).

• Multiplexing Mechanism: Unlike standard pCRISPR-cBEST, the "mc" (multiplexed cytosine) version utilizes the Csy4 endoribonuclease (from Pseudomonas aeruginosa) to process polycistronic sgRNA transcripts, allowing for simultaneous editing of multiple genomic targets.

• Editing Window: It facilitates C-to-T (or G-to-A) conversions within a specific window relative to the Protospacer Adjacent Motif (PAM), which is 5′-NGG-3′ for this system.

• Backbone: Based on a pSG5 replicon, making it a temperature-sensitive E. coli–Streptomyces shuttle plasmid.

• Promoters:

  • Base Editor: Driven by the inducible PtipA promoter (responsive to thiostrepton).

  • sgRNA Expression: Typically driven by promoters such as PkasO* or PermE*.




• Resistance: Confers resistance to Apramycin (25 μg/mL).

• Growth Conditions: Standard growth in E. coli (DH5alpha) is at 37°C, while growth in Streptomyces is typically conducted at 30°C due to its temperature-sensitive nature, which facilitates plasmid curing after editing.

The system is widely used for metabolic engineering and functional genomics in actinomycetes, particularly for introducing stop codons (STOP-BEST) or specific amino acid substitutions at multiple loci in a single step.

• 堿基編輯器（Base Editor）： 該質粒攜帶一個融合蛋白，由鏈霉菌密碼子優化的 rAPOBEC1（胞苷脫氨酶）、nCas9 (D10A) 和 UGI（尿嘧啶糖基化酶抑制劑）組成。

• 多重編輯機制（Multiplexing）： 與標準版相比，其名稱中的 "mc" 代表 "multiplexing-compatible"（兼容多重化）。它利用來自銅綠假單胞菌的 Csy4 核糖核酸內切酶來處理多順?lè)醋?sgRNA 轉錄本，從而實現在單個實驗中同時對多個基因組靶點進行編輯。

• 編輯效果： 主要介導 C 到 T（或 G 到 A） 的堿基轉換。在鏈霉菌中，這常被用于通過引入終止密碼子（STOP-BEST）來失活基因。

• 骨架載體： 基于 pSG5 復制子，這是一種溫度敏感型的大腸桿菌-鏈霉菌穿梭質粒。

• 啟動子：

  • 堿基編輯模塊： 由可誘導的 PtipA 啟動子驅動（受硫鏈絲菌素誘導）。

  • sgRNA 表達： 通常由 PkasO* 或 PermE* 等強啟動子驅動。




• 抗性標記： 具有 阿普拉霉素（Apramycin） 抗性。

• 培養條件： 在大腸桿菌中于 37°C 培養；在鏈霉菌中通常在 30°C 培養。由于其溫度敏感性，可通過提高溫度至 37°C-39°C 輕松消除質粒。

該系統廣泛應用于鏈霉菌的代謝工程和功能基因組學研究。它能高效地在多個位位點同時引入點突變或終止密碼子，特別適用于復雜的次級代謝產物合成基因簇（BGC）的改造。

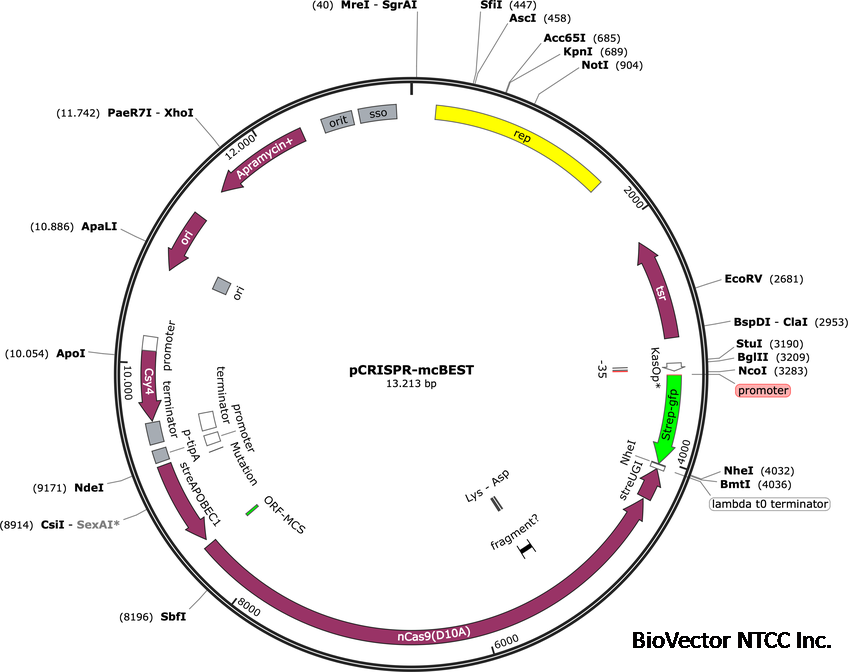

圖譜Map:
